Cooling Towers are Bottle Type/ Square Type in counter/cross flow design, ideal for large application with multiple cells.The maintenance of AEC Towers is very easy and cheaper than others. The towers can be installed at roof also.
Types of Towers
- FRP Counter Flow Bottle Shape

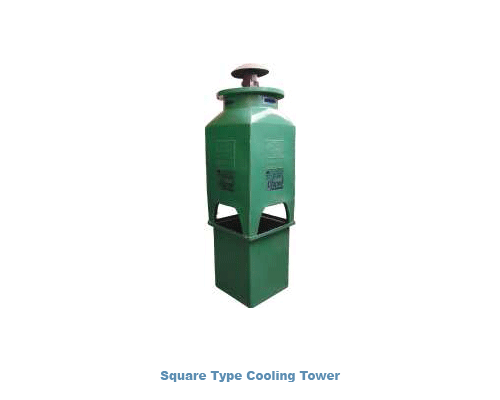

- FRP Counter Flow Square SHape
- FRP fabricated structured cross flow

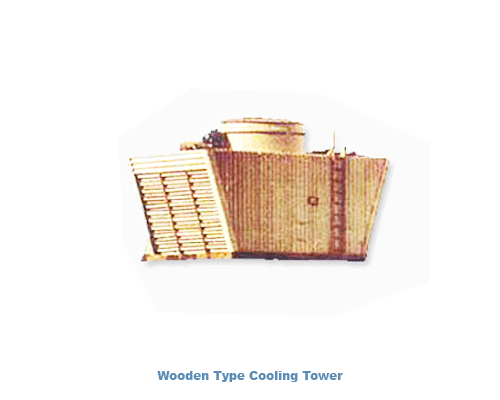

- Wooden Cooling Tower
- RCC Cooling Tower
Design Concept and special feature series AEC
*Working
We have been specially designed these cooling towers for reducing the water temperature with the help of an air stream with minor evaporatioon to reuse precious water in process industry.
Features
- Fiber glass reinforced plastic ( FRP ) body in attractive looks.
- Aesthetic, Compact Design and Light Weight.
- The Tower is highly efficient and corrosion proof.
- Designed and Constructed for minimum maintenance and long life.i.e., 400 % more than constructed tower.
- Able to operate in aggressive environments and resistant to water borne contaminates.
- The design is highly rigid against strong winds.
- Uniform distribution of water by unique mechanism.
- Honey Comb PVC Fill ( High efficiency fills) gives low pressure loss and thus economical to run.
- Minimum drift loss of water.
- The fan is specially designed to reduce noise.
- HDG/ Epoxy coated steel hardware.
- Inspection window for inspection in runnning position in case of square tower.
- Capacity from 5 TR to 500 TR in sigle shell and above in multi shell.
Applications
- CHEMICAL PLANT
- REFRIGERATION SYSTEM
- AIR COMPRESSORS
- PLASTIC MOULDING MACHINES
- INDUCTION FURNACES AND STEELS PLANTS
- ROLLING MILLS
- POWER PLANTS
- PROCESS WATER COOLING
- DIESEL GENERATING SET
- SOLVENT EXTRACTION PLANT
- AIR CONDITIONING PLANT
- CHILLING PLANTS
- HEAT TREATMENT PLANTS
- MEDICAL AND PHARMACEUTICALS INDUSTRIES
- HOTEL INDUSTRIES
- MALLS AND OFFICES
- AUTOMOTIVE
- PUMPS & VALVES
- SWITCH GEAR
- SEWING MACHINES
- PETROCHEMICAL
- FOOD PROCESSING UNIT
- ELECRONICS
- OTHER ENGINEERING INDUSTRIES
TECHNICAL SPECIFICATION |
MODEL NO. |
NOMINAL CAP. (MTR) |
MOTOR (HP) |
HEAT REJECT K.Cal/HR X1000 |
OPERATING WEIGHT (KGS) |
PUMP HEAD (MWC) |
AEC-0991-SQ |
2.5 |
0.25 |
9 |
50 |
1.5 |
AEC-1001-SQ |
5 |
0.5 |
19 |
150 |
1.7 |
AEC-1001 |
5 |
0.5 |
19 |
150 |
1.7 |
AEC-1011 |
7.5 |
1 |
28 |
200 |
1.7 |
AEC-1021 |
10 |
1 |
38 |
260 |
2.0 |
AEC-1031 |
15 |
1 |
56 |
350 |
2.0 |
AEC-1041 |
20 |
1 |
75 |
420 |
2.5 |
AEC-1051 |
25 |
2 |
94 |
450 |
2.5 |
AEC-1061 |
30 |
2 |
115 |
500 |
2.6 |
AEC-1071 |
40 |
2 |
150 |
700 |
3.0 |
AEC-1081 |
50 |
2 |
190 |
800 |
3.0 |
AEC-1091 |
60 |
3 |
225 |
950 |
3.0 |
AEC-1101 |
70 |
3 |
260 |
1100 |
3.0 |
AEC-1111 |
80 |
5 |
300 |
1400 |
3.0 |
AEC-1121 |
90 |
5 |
340 |
1500 |
3.0 |
AEC-1131 |
100 |
5 |
375 |
1650 |
3.0 |
AEC-1141 |
120 |
7.5 |
450 |
1800 |
3.3 |
AEC-1151 |
150 |
7.5 |
565 |
1950 |
3.3 |
AEC-1161 |
175 |
7.5 |
655 |
2200 |
3.8 |
AEC-1171 |
200 |
10 |
750 |
2300 |
3.8 |
AEC-1181 |
250 |
10 |
940 |
3500 |
4.0 |
AEC-1191 |
300 |
10 |
1125 |
4000 |
4.0 |
AEC-1201 |
400 |
15 |
1500 |
6000 |
4.5 |
AEC-1211 |
500 |
15 |
1875 |
6500 |
4.5 |
AEC-1221 |
600 |
20 |
2250 |
7400 |
5.0 |
1. Normal TR capacity has been computed on the basis of water circulation rate of 4 USGPM/TR at 95.5-90-83 0F conditions.(1 USGPM=4.543 LPM)
2. All design specifications are subject to change without notice as company is constantly endeavouring to improve the performance of its Cooling Towers. The company reserve the right to make alterations from time to time.
3. Performance is based upon installation in an outdoor location and absence of near by structures, which might prevent free air movement.
4. All models are available in light pastel Green /Grey/ Blue colour normally to match environment, other colours can be made available on special request.
