Water Treatment Plants



Water Treatment Plants
Water Treatment Plants Enquiry


We bring forth for you a sturdy range of water treatment plant which is chemical free and non-biological. Our robust constructed water treatment plant is very clean; noiseless that can reduce turbidity, suspended solids, odor and bacterial count. Water treatment plant manufactured by us is widely appreciated and demanded due to its environment and user friendliness. We are considered as well recognized water treatment plants manufacturer in India. With immense of expertise, we are able to cater the requirements diverse industrial customers of all over India. The company is known as a prominent manufacturer of water treatment plant who introduce you precision engineered range at market leading prices. These are fabricated by our in-house experienced technocrats and engineers. We have got a lot of appreciation for its durability, high quality, and robust construction. We have earned expertise in manufacturing different kinds of water treatment plant which is widely acknowledged by the nationwide customers.

Alfacool industrial up flow/Down-flow water treatment plant are based on principles involving exchange of ions, are manually operated and are designed to suit all kinds of industries. Alfacool plant employ the latest technology of counter flow system for regeneration. The unit produces treated water as per requirement through out the cycle. In the Alfacool softening cycle, calcium and magnesium ions which are responsible for causing hardness are replaced by sodium ions. After a certain quantity of water passes through the resin bed, the resin gets exhausted and demanding regeneration. Regenration is effected by injecting sodium chloride to convert the resin back to Na+form.



Types of Water Treatment Plants :

  1. Softening plants
  2. De-mineralize Plants
  3. Mix-Bed Plants/Units
  4. De-Alkanizer Plants
  5. Pressure Sand Filter
  6. Air Pollution Control Devices
  7. Activated Carbon Filter
  8. R.O. Plant
  9. Effluent Treatment Plant

Water Treatment Plant

Technical Details for Water Softening Plant
(Standard Model for easy selection)

Model

Flow Rate

Working Pressure
Output per regeneration M3
Treated Water Hardness
Maximum
Minimum
Maximum
Minimum
Based on raw water hardness
M3/hr
M3/hr
Kg/cm2
Kg/cm2
200 PPM
300 PPM
400 PPM
PPM as CaCo3
AEC-200/UF
3.0
0.4
3.5
1.7
18.0
12.0
9.0
< 5
AEC-300/UF
4.0
0.6
3.5
1.7
36.0
24.0
18.0
< 5
AEC-400/UF
6.0
0.8
3.5
1.7
54.0
36.0
27.0
< 5
AEC-500/UF
9.0
1.0
3.5
1.7
81.0
54.0
40.0
< 5
AEC-600/DF
11.0
1.5
3.5
1.7
108.0
72.0
54.0
< 5
AEC-700/DF
14.0
1.7
3.5
1.7
136.0
90.0
68.0
< 5
AEC-800/DF
16.0
1.8
3.5
1.7
180.0
120.0
90.0
< 5
AEC-900/DF
18.0
1.9
3.5
1.7
225.0
150.0
112.0
< 5
AEC-1000/DF
22.0
2.0
3.5
1.7
270.0
180.0
135.0
< 5

Note:

  • The raw water should be free from heavy chlorine, metals,turbidity,organic matter, oil and available at ambient temperature.
  • Output per regeneration will vary with input water quality.
  • Any additional requirement of instruments such as flow indicator, pressure gauge, level indicator etc. can be available optionally on request on extra cost.

Advantages

  • Eliminates scaling of costly equipment like boilers and heat-exchanger's and enhances their life.
  • Improves efficiency of costly equipment
  • Reduces downtime losses.
  • Simple to operate.
  • Low regeneration cost.
  • Consistent treated water quality.
  • Available in different standard models to take care of a wide range of hardness for different capacities.

De-Mineralize Plant

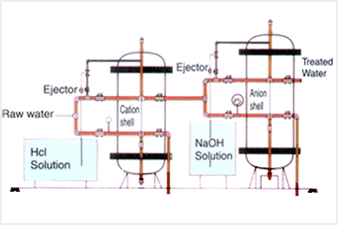

In this process there are two columns having strong acid cation(Exchanger) Resin with (H+) charged & second the shell has Strong Base Anion (Exchanger)Resin (OH-) charged. The raw water laden with dissolved solids, normally represented as total cations & anions is passed through Strong Acid Cation Exchanger, which replaces all the cat ion by its charge of H+.

Thereafter this de-cationized water is passed through Strong Base Anion Exchanger, which replaces its all anions by its charge OH-.and get demineralize water in output.
